AMPHIBIOUS RHIBS

WHY AN AMPHIBIOUS?

  • Straight driving onto any beach
  • Accessibility to the shallowest water
  • Access to areas of high tidal range
  • Ease of entry to previously inaccessible areas of operation
  • Extremely fast deployment response: Rapid transition between land and water
  • Increased patrolling areas
  • Rapid interception in SAR cases.
  • Unique rescue capability and flood response
  • Ability to traverse obstacles, variable depths and debris

The Only 4 WD Amphibious boat out there

Looking to cut on response times, patrol aquatic areas efficiently or deliver unforgettable experiences to customers, look no further. Once you’ve been on an ASIS Amphibious Craft, you wont be able to go back. The mobility, versatility and freedom it gives you are unparalleled. ASIS Professional Amphibious Boats are favoured around the world for professional mariners in Law Enforcement, Firefighting, Search and Rescue, Coast-Guard Patrol, Flood Rescue as well as Transportation and guided tours.

  Available as an upgrade option for all ASIS boats ranging from 5.1 meter to 12 meter
  Available on both outboard and inboard powered boats
  Available on GRP or Aluminium Hull boats

WHY AN AMPHIBIOUS?

  • Straight driving onto any beach
  • Accessibility to the shallowest water
  • Access to areas of high tidal range
  • Ease of entry to previously inaccessible areas of operation
  • Extremely fast deployment response: Rapid transition between land and water
  • Increased patrolling areas
  • Rapid interception in SAR cases.
  • Unique rescue capability and flood response
  • Ability to traverse obstacles, variable depths and debris

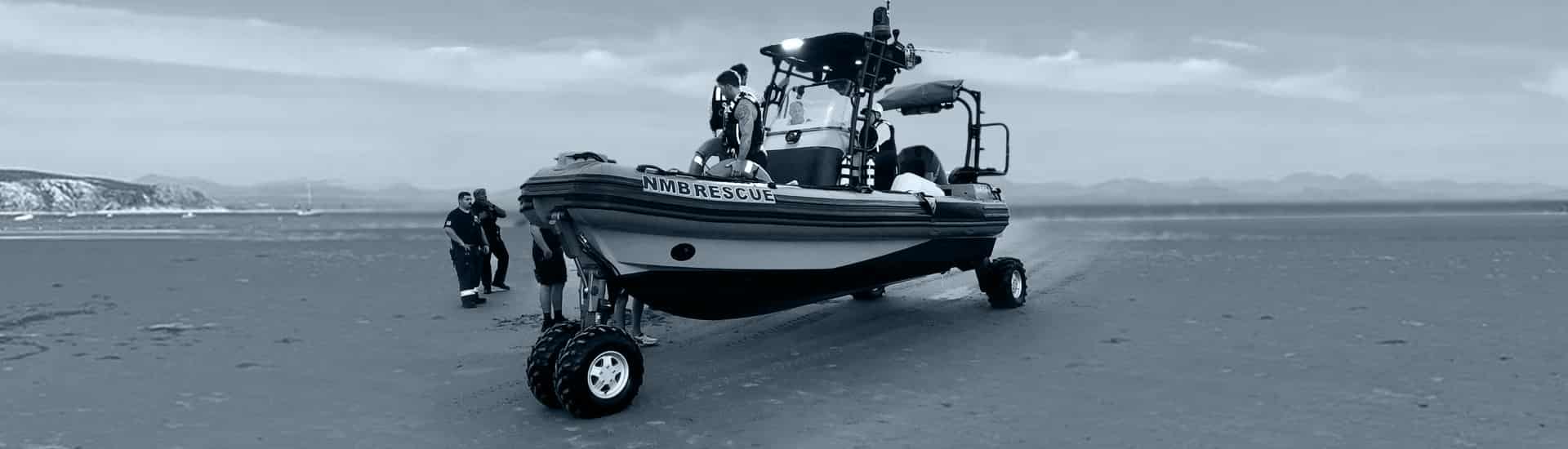

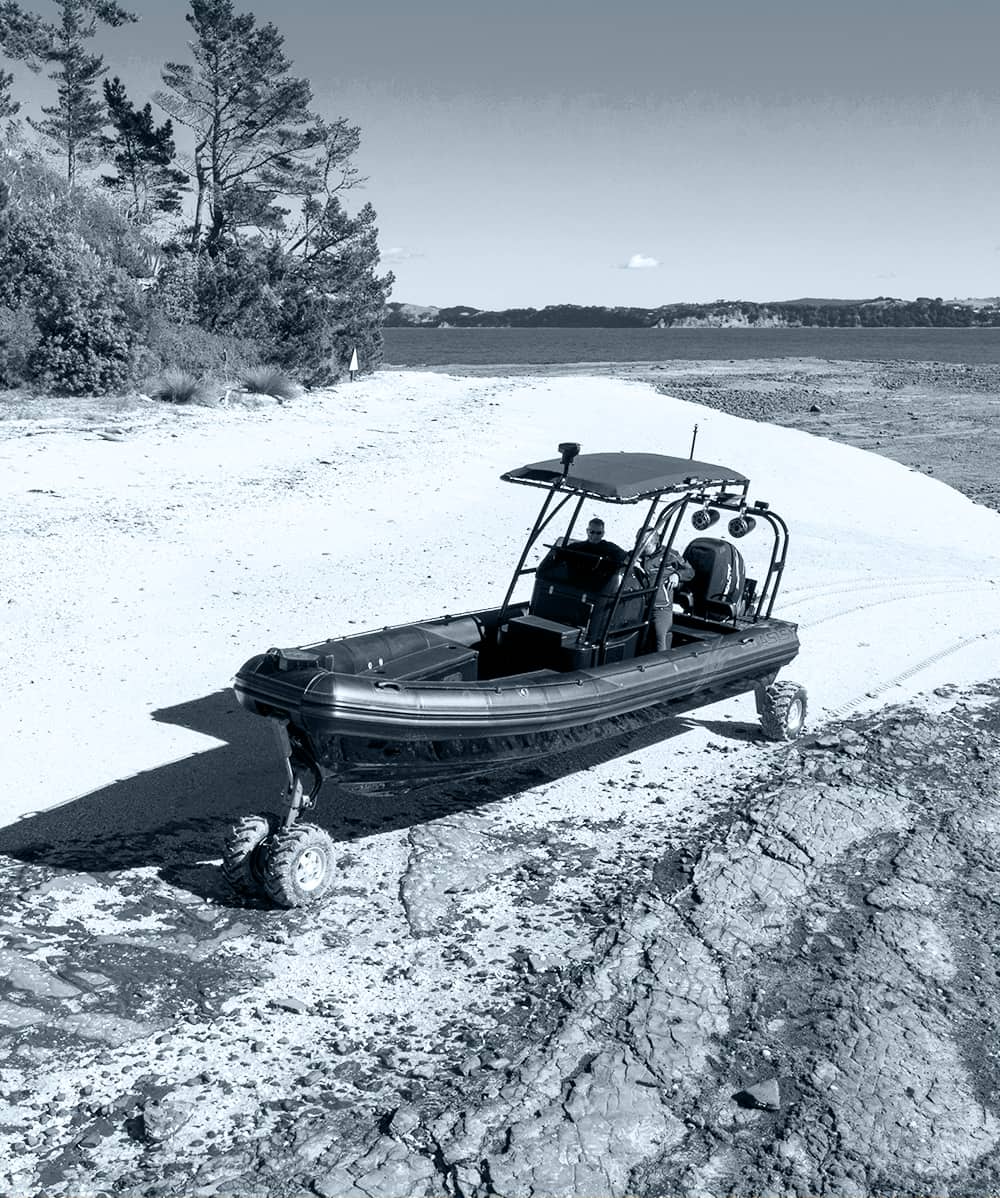

The BAS Amphibious System

The Amphibious system consists of motorized, retractable and steerable wheels, powering the boat with off-water capabilities. The entire system is marinized and stays completely out of the water while underway. This means there is no compromise to on-water performance. Once fitted with the Amphibious technology, any ASIS boat will be able to travel directly between land and sea by the use of four retractable wheels with a hydraulic system linked to an inboard motor. ASIS Professional Amphibious Boats are specifically designed for your mission.

The BAS Amphibious System

The Amphibious system consists of motorized, retractable and steerable wheels, powering the boat with off-water capabilities. The entire system is marinized and stays completely out of the water while underway. This means there is no compromise to on-water performance. Once fitted with the Amphibious technology, any ASIS boat will be able to travel directly between land and sea by the use of four retractable wheels with a hydraulic system linked to an inboard motor. ASIS Professional Amphibious Boats are specifically designed for your mission.

PRINCIPAL CHARACTERISTICS

AMPHIBIOUS RHIBs

Length Overall :
7.22 m – 23’8″
Beam Overall: 2.52 m – 8’3″
Tube diameter: 0.45 m – 1’6″
Lightship: 1,772 kg – 3,907 Ibs
Payload: 1,185 m – 2,612 Ibs
Fuel Capacity: 40 – 60 gal
Recommended Power: 150 hp
Max Power allowed: 230 hp
No of Pax: 9 No. on water & 8 No. on land
Classification: B
Number of Air Chamber: 6
Length Overall :
8.57 m – 28’1″
Beam Overall: 2.55 m – 8’4″
Tube diameter: 0.45 m – 1’6″
Lightship: 2,486 kg – 5,481 Ibs
Payload: 1,441 kg – 3,177 Ibs
Fuel Capacity: 60 – 100 gal
Recommended Power: 2 x 150 hp
Max Power allowed: 2 x 250 hp
No of Pax: 11 No. on water & 8 No. on land
Classification: B
Number of Air Chamber: 6
Length Overall :
9.33 m – 30’7″
Beam Overall: 2.95 m – 9’8″
Tube diameter: D -Tube
Lightship: 3,700 kg – 8157 Ibs
Payload: 1,950 kg – 4,299 Ibs
Fuel Capacity: 60 – 135 gal
Recommended Power: 2 x 200 hp
Max Power allowed: 2 x 300 hp
No of Pax: 12 No. on water & 8 No. on land
Classification: B
Number of Air Chamber: 8
Length Overall :
9.98 m – 32’9″
Beam Overall: 3.17 m – 10’5″
Tube diameter: 0.56 m -1’10”
Lightship: 3,210 kg – 7,077 Ibs
Payload: 1,950 kg – 4,299 Ibs
Fuel Capacity: 60 – 205 gal
Recommended Power: 2 x 250 hp
Max Power allowed: 2 x 400 hp
No of Pax: 15 No. on water & 5 No. on land
Classification: B
Number of Air Chamber: 8

BAS SYSTEM ATTRIBUTES

1
Maximum size of Boat

32’8’’ – 10m

2
Speed on land

5.6 mph – 9 kph (4WD)

3
System Motor power

35 HP

4
Motor Cooling system

Air cooled

5
Maximum Torque

2,582 ft-lb – 3,500 Nm

6
Size of Tyres

26″ x 12″

7
Weight of system

1,323 lbs – 600 kg

8
Built strong to Lift Boat & max payload

Yes

BAS SYSTEM ATTRIBUTES

4 WD

High stability on land
Custom designed tires for better traction
4 wheels independently driven by 4 independent motors
Excellent traction as weight of the boat is divided on 4 wheels
Differential lock; allows redistribution of power on other wheels

FBW- Fly-by-wire

All controls are digital
Operation extremely easy and effortless

G2 Design

Advanced design using PLC enabling full system monitoring

SAFETY

Hydraulic Braking System

QUALITY

1 year warranty
Easy to maintain
All parts are marine anodized

PERFORMANCE

Easy to maintain
Reaches speed of 9.0km/hr on land
Can run continuously for 1 hour for a distance of 10 km

ASIS AMPHIBIOUS SYSTEM (BAS-100)

Hydraulic Power Unit:
  • Briggs and Stratton 27 kW (35HP), EFI engine equipped with “control by wire” (CBW). CBW technology removes the need for mechanical cable connections which provides greater installation options and “smart” stability of operation.
Wheels/tyres:
  • Custom rim manufactured with offset to place load in optimum position over hydraulic motor bearings
  • 26x12x12 turf tyres
  • Wheels are marine coated
Other features of the engine:
  • Equipped with an oxygen sensor to reduce emissions
  • Engine speed monitoring for stability of operation
  • Consistent, easy starting
  • Superior fuel economy
  • On-board diagnostics for remote fault finding
amphibious rib boat

PROGRAMMABLE LOGIC CONTROLLER (PLC)

All functions of the system are controlled via a PLC allowing:
  • Full system monitoring and on-board diagnostic capabilities
  • Remote monitoring of system performance and service support
  • Self centering of steering wheel assembly
  • Brakes with auto on feature if no drive signal received after 5 secs
  • Auto engine speed control for wheel retraction/extension
  • CAN Bus system. Sending control signals as data.
User Interface (UI)
  • There are three electronic UI components i.e. joystick, keypad and “System Fault” LED
  • An optional “system scanner” is available
4-Wheel drive system
  • Superior traction and less ground pressure – weight spread over four wheels
  • 1 year full warranty on the 4 Wheel-Drive system or 30 hours whichever occurs first for the recreational users / 90 consecutive days on the 4 Wheel-Drive system for commercial or professional use
amphibious rib
